Ports to connect to on The Attendant: BUS1 – BUS4
Ports to connect to on The Attendant Mini: BUS1 – BUS2
If you are wiring one of these chlorinators together with a Pentair i3 water pump on the same bus port on the Attendant, you need to ensure that the pump’s “Automation Address” is set to something other than 1.
If you don’t update the pump’s address (on the pump, and in the Attendant’s configuration, you could experience problems operating the pump!

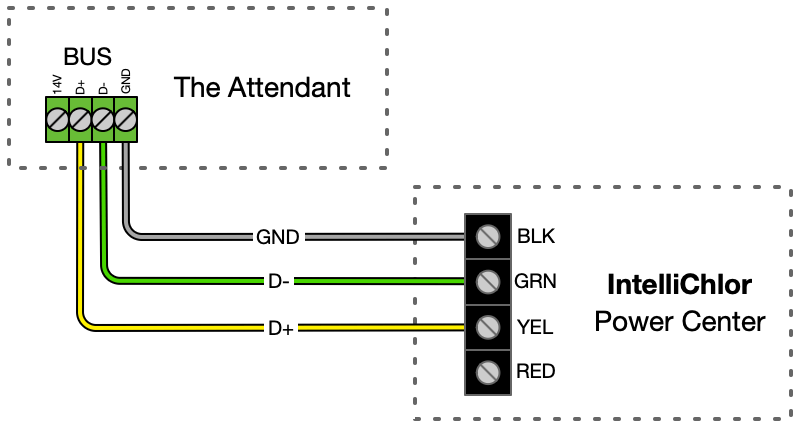

Please reference the following diagram to connect the IntelliChlor to The Attendant.
Chlorinator (YEL) connects to D+ on The Attendant Bus Port
Chlorinator (GRN) connects to D- on The Attendant Bus Port
Chlorinator (BLK) connects to GND on The Attendant Bus Port
NOTE
Only one IntelliChlor salt chlorine generator is supported per Bus port
